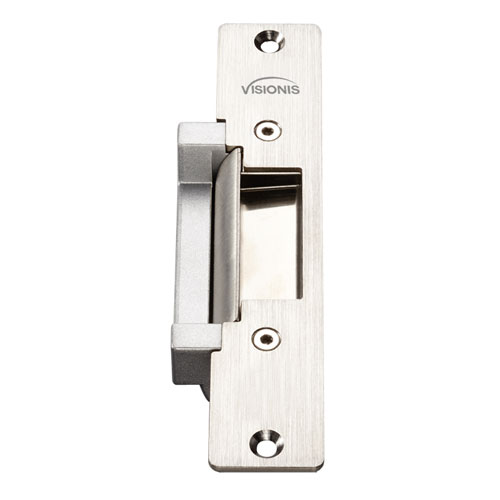

VIS-EL102-FSA – 770lbs Electric Door Strike for Wood and Metal Doors 12V Fail Safe, Normally Closed with Rubber Lining

SKU: VIS-EL102-FSA Categories: ,
  • Suitable For Wooden Door, Metal Door, PVC Door
  • Fail Safe. N/C with power it’s lock
  • Holding Strength: 350kg (770 pounds).
View More
  • CE

Downloads:

The VIS-EL102-FSA is an electric strike lock designed for wood, metal and PVC doors. This is a perfect solution for a simple or advanced access control systems. The operating principle of an electric strike lock is that it turns into a magnetic force. The strike has an impressive 350kg/770lbs of magnetic force. You can’t get more secured than that.

  • Holding Strength: 350kg (770 pounds).
  • Aluminum, stainless steel bolt.
  • Function: Fail Safe (with power it’s lock)
  • Microswitch / Monitoring / 305: Yes
Lock Size 124Lx46Wx39H (mm) - 4.88Lx1.81Wx1.53H (in.)
Holding Strength 350kg (770 pounds)
Voltage 12VDC
Current 200 - 230 mA
Feature Fail Safe. N/C with power it’s lock
Microswitch / Monitoring / 305 Yes
Suitable For Wooden Door, Metal Door, PVC Door
Connections Power supply: No polarity (Polarity if a diode is installed). Microswitch: COM contact, NC contact, NO contact.
Cycles Tested 300.000
Operating Temperature -15°C / +40°C (5°F / 104°F)
Solenoid Continuously duty
Product + Packaging Weight 0.39kg (0.86 pounds)
