VIS-3200 – 433MHz + Outdoor IP 65 + Black + Wireless Exit Button, Receiver, Keypad + Access Control + 500 Users + 165 Feet Range + Delay and On/Off + Battery Operated + Standalone No Software

SKU: VIS-3200 Category:
  • This kit includes: wireless & waterproof keypad, a mini controller, and a wireless exit button
  • Colors available: Black
  • Communication distance: 50m Max. (165 feet)
View More
  • FCC
  • CE

Downloads:

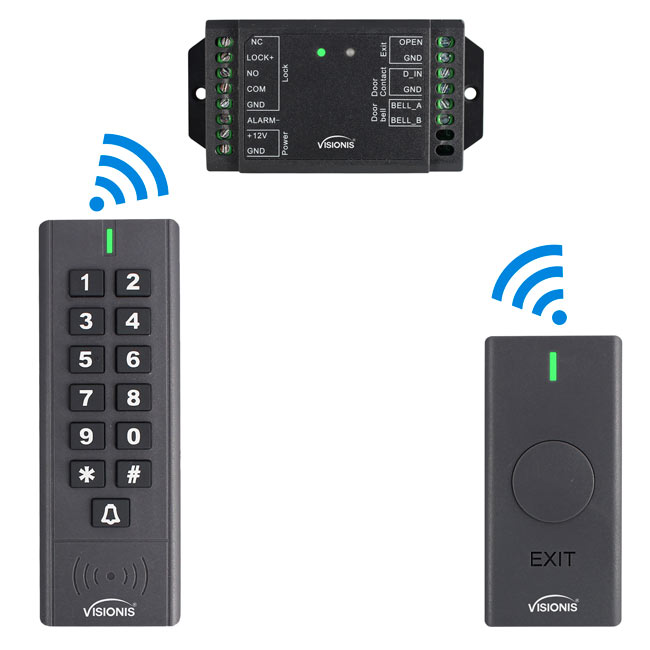

The device is a single door wireless access control, consists of a wireless & waterproof keypad, a mini controller, and a wireless exit button. 433MHz rolling code of encryption algorithm and the split design guarantees higher-secure.

The keypad can store 600 PIN/card users, including 500 common users and 100 visitors’ users. PIN length can be 4~8 digits, with internal & external alarm, door contact, exit button (wired) and doorbell.

Because of ultra-low power consumption, the keypad and exit button can work as long as one year (bases on 20 times/day), with just 3 units of AAA batteries and 1 unit Li-battery. It will remind people to replace batteries intelligently if low battery.

Features:

  • Waterproof, conforms to IP65
  • 600 PIN / card users (500 common users + 100 visitor users)
  • PIN length: 4~8 digits
  • Backlit keypad
  • Communication frequency: 433MHz
  • Communication distance: 50m Max.
  • Door contact, alarm and doorbell output
  • Pulse mode, toggle mode

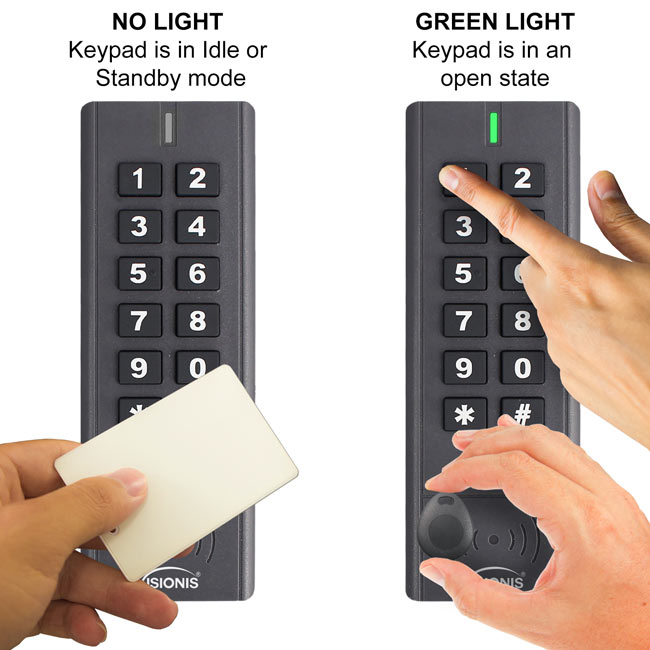

  • Tri-color LED status display
  • Ultra-low power consumption (wireless keypad≤10uA)

ATTENTION:

  • The Keypad and Exit Button are used as complete wireless transmitters. The black mini box is used as the Receiver.
  • Keep in mind that if you use any type of Electrical lock, you must HARD WIRE it to the receiver.
  • The wireless keypad uses 3 Units of AAA batteries and they are INCLUDED.

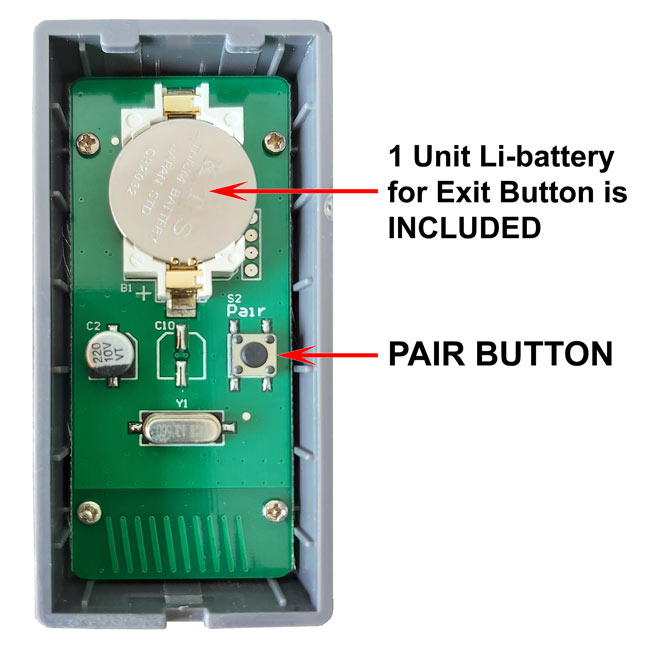

  • The Wireless Exit Button uses 1 unit of 2032 lithium battery, THE BATTERY IS INCLUDED FOR THE EXIT BUTTON.
  • All Wireless Devices included in this kit have already been paired with the receiver. No pairing is needed.
User Capacity 600 PIN / card users (500 common users + 100 visitor users)
PIN Length 4~8 Digits
Card Type 125KHz EM Card
Operating Voltage Wireless Keypad: 3 units of AAA batteries (INCLUDED) Mini Controller: 12V DC ±20% Wireless Exit Button: 1 unit of 2023 Lithium battery (INCLUDED)
Idle Current Wireless Keypad: ≤10uA Mini Controller: ≤20mA Wireless Exit Button: ≤10uA
Working Current Wireless Keypad: ≤80mA; Mini Controller: ≤50mA Wireless Exit Button: ≤30mA
Dimensions Wireless Keypad: L134 x W48 x D25(mm) - L5.27 x W1.89 x D0.98(in.) Mini Controller: L85 x W50 x D25(mm) - L3.35 x W1.96 x D0.98(in.) Wireless Button: L80 x W38 x D15(mm) - L3.15 x W1.50 x D0.59(in.)
Unit Weight Wireless Keypad: 150g Mini Controller: 65g Wireless Button: 34g
General
Communication Frequency 433MHz
Communication Distance 50m Maximum (165 feet)
Relay Contact Load 2Amp Maximum
Operating Temperature -40°C~60°C (-40°F~140°F)
Operating Humidity 10%~90% RH
Material ABS Shell
