VIS-3004 – Access Control Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital + Reader Standalone with Mini Controller, Wiegand 26, Wide Design No Software EM Cards, 1000 Users

  • Ultra-low power consumption: Standby current is less than 30mA.
  • Input & Output: Wiegand26.
  • Waterproof Rate: IP68, indoor or outdoor use.
View More
  • FCC
  • CE

Downloads:

VIS-3004 Keypad/Card Reader Description

The device is a metal access control keypad and proximity card reader which supports EM, and MFR card types, it’s one of the most advanced standalone access control.

It adopts unique design with metal material and durable backlight metal keyboard, builds-in USA Atmel microprocessor, with strong anti-interference ability, high security and reliability, powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.

Features

  • Ultra-low power consumption: Standby current is less than 30mA.
  • Input & Output: Wiegand26.
  • Searching Time: Less than 0.1s after reading card.
  • Backlight Keypad: Easy to operate at night.
  • Doorbell interface: Support external wired doorbell.

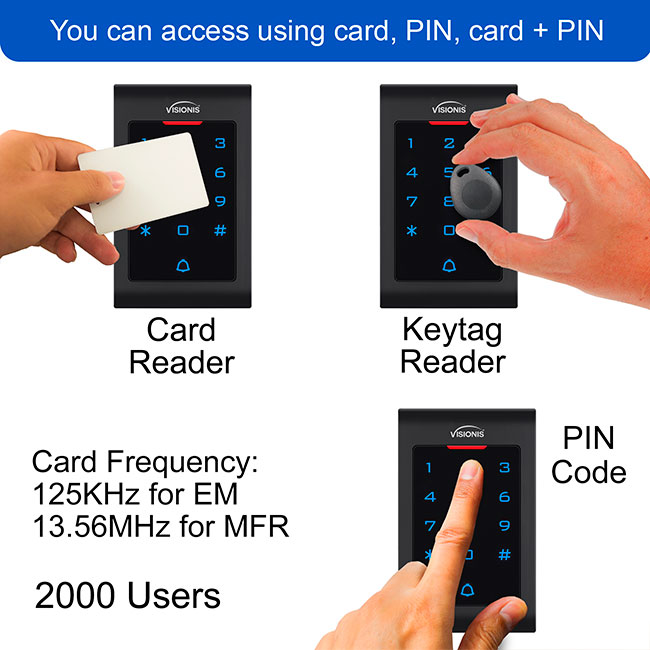

  • Access ways: Card, code, card+code.
  • Independent codes: Use codes without related card.
  • Change Codes: Users can change codes by themselves.
  • Anti-tamper alarm: Alarm is activated after tear down illegally.
  • Delete Users by card NO.: Delete card NO. by keypad to eliminate security risk completely.
  • Waterproof Rate: IP68, indoor or outdoor use.



VIS-MINI-CNTRL Mini Controller Description

This keypad comes with the VIS-MINI-CNTRL. This device is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.

VIS-MINI-CNTRL Features

  • User Capacity: 1,000
  • Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
  • Can connect with any reader with Wiegand 26~37 bits output
  • Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
  • Support Master Card function
  • Low temperature resistance (-40°C)

IMPORTANT:

  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.

VIS-3004 Keypad/Card Reader Specification

Input voltage DC 12V
Idle current ≤25mA
Card Reading Distance 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency 125KHz for EM and MFR
Card Transmission Format Wiegand26
Keypad Transmission Format 4bit, 8bit and Virtual card number
Operating Temperature -45°C~55° C (-49°F ~ 131°F)
Operating Humidity 0%~95%
Product Size 118Lx81Wx26H (mm) - 4.64Lx3.18Wx1.02H (in.)
Protection Level IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

VIS-MINI-CNTRL Mini Controller Specification

User Capacity 1,000
Operating Voltage 9~24V DC
Idle Current < 20mA
Relay One (NO, NC, Common)
Adjustable Relay Output Time 1~99 Seconds (5 seconds default)
Lock Output Load 2 Amp Maximum
Wiegand Interface Input Wiegand 26~37 bits
Wiegand Interface Output Wiegand 26~37 bits (for user transfer)
Environment Indoor. Meets IP66
Operating Temperature -40°C~60°C (-40°F~140°F)
Operating Humidity 0 ~ 90%RH
Physical ABS Shell
Dimensions L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
Unit Weight 40g
Shipping Weight 100g

Packaging

VIS-3004 Packaging
