VIS-3003 – Access Control Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital Touch Keypad + Reader Standalone + Wiegand 26 Slim Design No Software EM + Mifare Cards Compatible 2000 Users
VIS-3003 Keypad/Card Reader Description
The device is a metal access control keypad and proximity card reader which supports EM, and MFR card types, it’s one of the most advanced standalone access control.
It adopts unique design with metal material and durable backlight metal keyboard, builds-in USA Atmel microprocessor, with strong anti-interference ability, high security and reliability, powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.
Features
- Ultra-low power consumption: Standby current is less than 30mA.
- Input & Output: Wiegand26.
- Searching Time: Less than 0.1s after reading card.
- Backlight Keypad: Easy to operate at night.
- Doorbell interface: Support external wired doorbell.
- Access ways: Card, code, card+code.
- Independent codes: Use codes without related card.
- Change Codes: Users can change codes by themselves.
- Anti-tamper alarm: Alarm is activated after tear down illegally.
- Delete Users by card NO.: Delete card NO. by keypad to eliminate security risk completely.
- Waterproof Rate: IP68, indoor or outdoor use.
VIS-3003 Keypad/Card Reader Specification
| Input Voltage | DC 12V |
| Idle current | ≤25mA |
| Card Reading Distance | 2 - 3 cm (0.78 - 1.18 in.) |
| Card Frequency | 125KHz for EM // 13.56MHz for MFR |
| Card Transmission Format | Wiegand26 |
| Keypad Transmission Format | 4bit, 8bit and Virtual card number |
| Operating Temperature | -45°C ~ 55°C (-49°F ~ 131°F) |
| Operating Humidity | 0%~95% |
| Product Size | 133Lx59Wx21H (mm) - 5.23Lx2.32Wx0.82H (in.) |
| Protection Level | IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof |

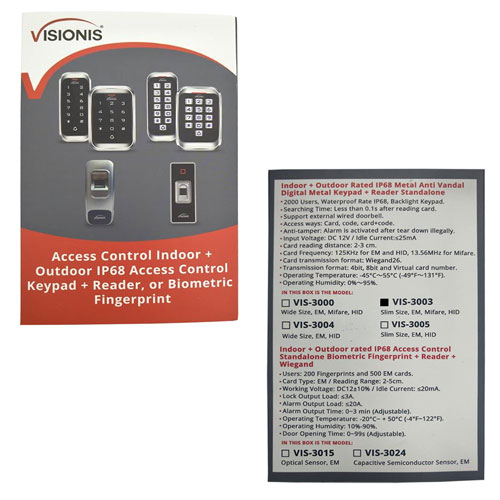

Packaging
