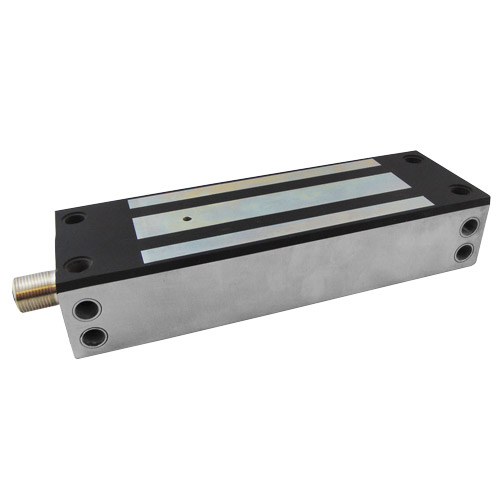

VS-SS1500-G – 1500lbs Outdoor Electromagnetic Locks

SKU: VS-SS1500-G Categories: , ,
  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 450mA ; 24V / 220mA (±5%)
  • Holding Force: Up to 1500 lbs (680 kg)
View More
  • CE


The VISIONIS Stainless Steel series electromagnetic locks are renown with its water-proof construction for all weathers used and the heavy duty with excellent holding force.

The series are compliance to CE and manufactured under the highest quality control to achieve the commitment to customer who always satisfied with maximum quality and reliability.


Download Mounting Template

Voltage Input 12 VDC / 24 VDC
Current Draw 12V / 450mA ; 24V / 220mA (±5%)
Holding Force Up to 1500 lbs (680 kg)
Hall Effect Contact 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment Blue Zinc Plating
Operating Temperature 0~55° C (32~131° F)
Operating Humidity 0~95% (non condensing)
Weight (Magnet) 4.5 kg (±1%)
Dimensiones Magnet - (L) 230x(W)72x(T)48 mm Armature - (L) 200x(W)70x(T)16.5 mm
