Product Detail

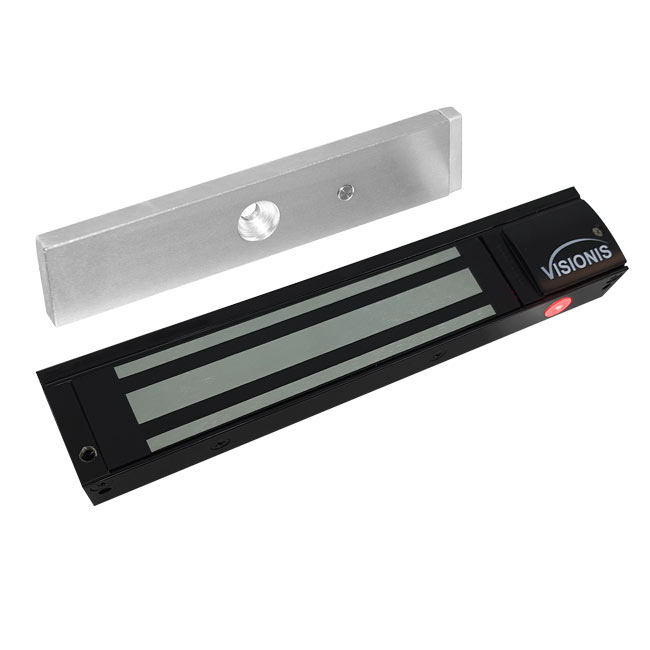

VIS-ML600LED-BL – Black 600LBS Indoor Electric Lock with LED Sensor

SKU: VIS-ML600LED-BL Categories: , ,
  • Color: Black
  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA; 24V / 250mA (±5%)
  • Holding Force: Up to 600 lbs (272 kg)
View More
  • CE

Downloads:

The VISIONIS 600 series electromagnetic locks are renown with its excellent holding force and the remarkable features. The series compliance to CE and PSB Test are manufactured under the highest quality control to achieve the commitment to customer who always satisfied with maximum quality and reliability.

OTHER COLORS AVAILABLE



Download Mounting Template



VIS-ML600LED-BL - Black 600LBS Indoor Electric Lock with LED Sensor



VIS-ML600LED-BL - Black 600LBS Indoor Electric Lock with LED Sensor



VIS-ML600LED-BL - Black 600LBS Indoor Electric Lock with LED Sensor

Color Black
Voltage Input 12 VDC / 24 VDC
Current Draw 12V / 500mA ; 24V / 250mA (±5%)
Holding Force Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment Blue Zinc Plating
Operating Temperature 0~55°C ( 32~131°F)
Operating Humidity 0~95% ( non condensing)
Weight ( Magnet) 1.1 kg (±1%)
Dimensions Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm

Installation Video
